Bedroom clock with out side temperature based on ESP32

Status: Einsendung
6174
20
31. März 2018 , Letztes Update: 31. März 2018
Some years ago I bought 4 large 7-segment display  SA40-19SRWA and now I found the best controller ESP32 to get the time from NTP and the temperature via MQTT from my home automation server. So I build a system with 3 components:

1. Sensor modul based on ESP32 and DHT22 sensor.

2. HAS home automation server based on RaspberryPi and MQTT.

3. 4 digit display with large 7 segment modules and ESP32.


Mehr anzeigen
Weniger anzeigen
Bilder

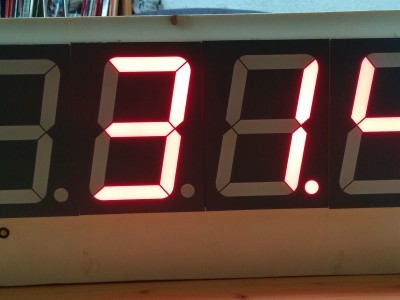

Display Temperature

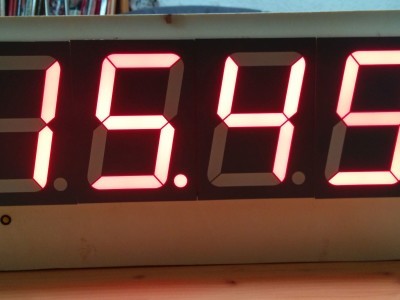

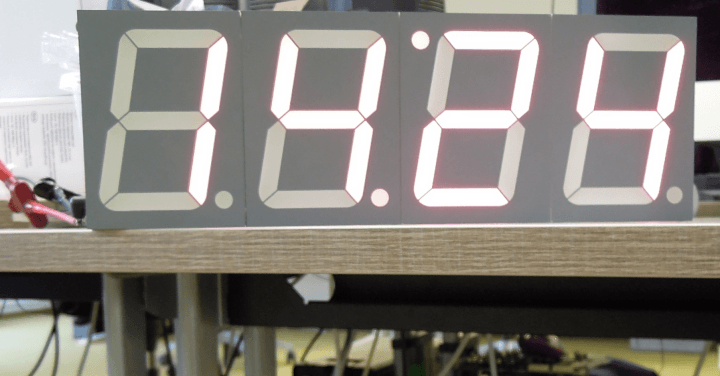

Display Time

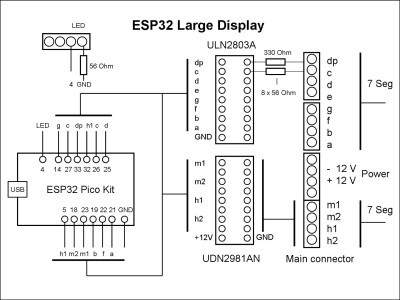

Schematics Board

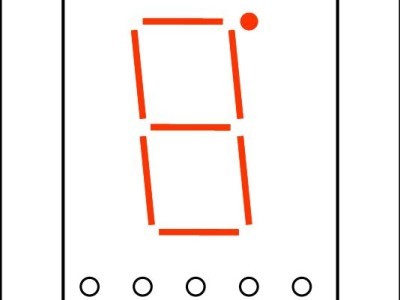

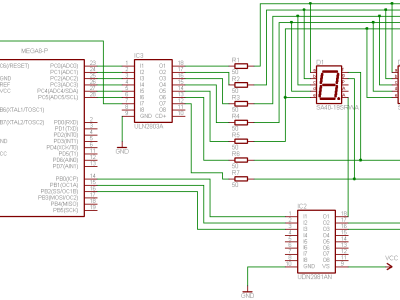

Schematics Display

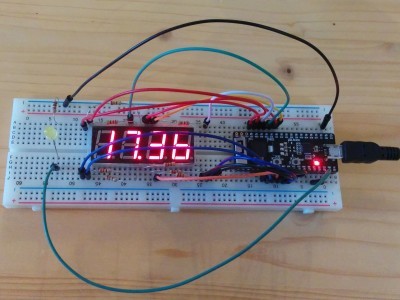

Prototype (first)

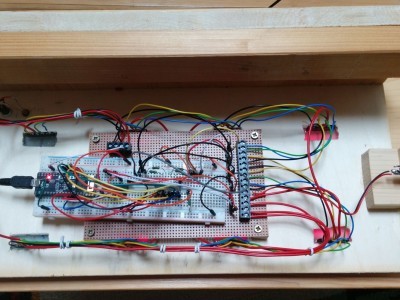

Prototype V2
Display (microcontroller.net)

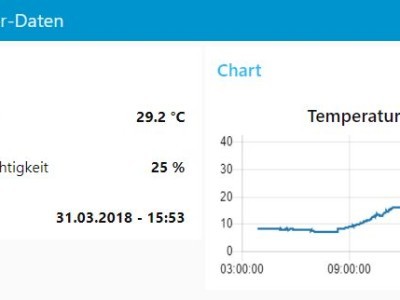

Node-RED Display (Desktop)

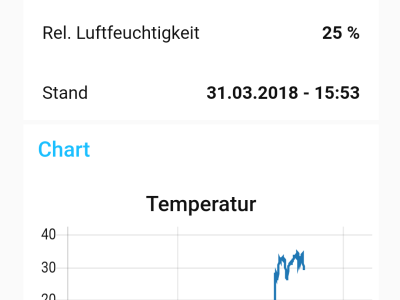

Node-RED Display (Smartphone)
Sensor Prototype
