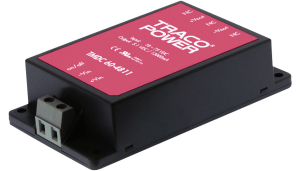

The TMDC series is a range of fully encapsulated low profile DC/DC-converter modules. They come in chassis mount version with screw terminal block. Mounting on DIN-rail is possible with optional bracket. The modules have ultra wide input voltage ranges of 9–36 VDC and 18–75VDC and are available with fixed 5.1, 12, 24 and 48 VDC output voltages in the power classes of 20, 40 or 60 Watt. The operating temperature of these high performance converters goes from -40 up to 85°C. They feature a remote control input while a green LED indicates the presence of the output voltage. EMC characteristics and safety certifications are aligned for the operation in industrial and residential environment.
