Digital control constant current source

Status: Einsendung
12890
26
Bew.
5. März 2017, Letztes Update: 13. August 2017
This project object is an digital controlled current source with standard parts, low cost and high stability. The analog circuit is inspired by Elektor 11/77, first test on breadboard looks very good. As load three LEDs in this example. The schematic and simulation is attached.
Mehr anzeigen
Weniger anzeigen

Downloads


Bilder

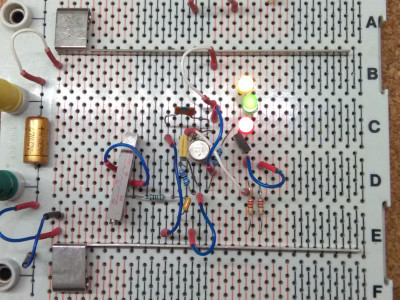

test on breadboard

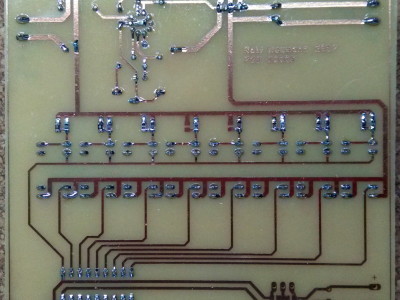

Bottom view, soldered PCB
