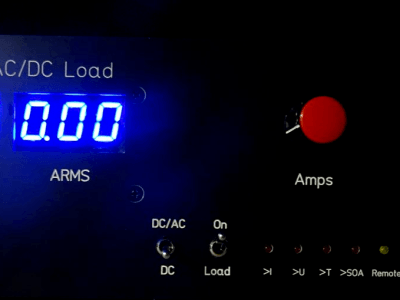

This Electronic Load for DC and AC has some remarkable Features:
Input voltage up to 400V
Load current up to 10A
Power dissipation up to 200W
Remote controllable via (isolated USB interface)
Suitable for DC and AC
7-segment displays for VRMS and ARMS
- Stromversorgung
- Labs-Projekt
Electronic load for DC and AC
24. November 2019 , Letztes Update: 30. November 2019
Mehr anzeigen
Weniger anzeigen
Software
-
Firmware.zip (11.8 KB )Firmware for ATMega32 - Electtronic_ACDC_Load_VB.zip (221.97 KB )VB software for controlling the elctronic load
CAD
- Schematics_layouts.zip (325.75 KB )Schematics and layouts for the electronic load
