Variable brightness controller for Christmas LED lights with Arduino

Status: Einsendung
58
1
Bew.
3. April 2019
The basis: 24V system of multi-coloured LED garlands for Christmas trees with 220V transformer and rectifier. The brightness of the garlands is fixed.

Project: animate the LED lights with an Arduino to have variations in on-off and variations in brightness, and random choice.

The components:
- 1 Arduino nano
- 1 Arduino support for tests
- 1 power supply for the Arduino from 24V (Internet shop)
- 1 FET module for garland control (Internet shop)
- 1 interface driver for the FET module with the Arduino
- 1 printed circuit board with holes for mounting
- several connectors for garlands
- 1 plastic box to encapsulate the project

At this stage of the project, I choose to program Arduino to control only one PWM output.
Also, I choose to set seven different control light programs in two sets :
- one set to control ON/OFF light with different ON time and OFF;
- one set to control variable PWM light with different time.

Each program is selected randomly. In my first tests I saw that Arduino random is not so random. So I added a new lib for TrueRandom. With it I saw selected random program is more random.

For PWM control, I choose 32 steps for ON and the same for OFF variations in sine wave because eye light perception is not linear.

Here is the listing:

//
//
/*
    Name:       Led_Guirlandes.ino
    Created:    05/01/2019 20:18:18
    Author:     Sergio
    Gestion et animation d'1 guirlande LED sous 24V
    Base : Arduino Nano + tampon de commande + module avec IRF520 transistor + module alim abaisseur tension 24V > 8V for arduino nano
    Animation en ON/OFF et en variations lumineuses

1- clignotement
    ON 500ms
    OFF 1500ms - 30% lum
    durée 10000ms - as X 5

2- clignotement
    ON 500ms
    OFF 500ms - 0%
    durée 10000ms - as X 10

3- clignotement
    ON 1000ms
    OFF 500ms - 0%
    durée 15000ms - as X 10

4- clignotement
    ON 2500ms
    OFF 500ms - 0%
    durée 18000ms - as X 6

5- var
    OFF-ON 1024ms    multiple of 32
    ON-OFF 1024ms    multiple of 32 may be different from ON
    wait OFF 0ms
    durée as X 7

6- var
    OFF-ON 3008ms    multiple of 32
    ON-OFF 3008ms    multiple of 32 may be different from ON
    wait OFF 0ms
    durée as X 4

7- var
  OFF-ON 1984ms multiple of 32
  ON-OFF 3520ms multiple of 32 may be different from ON
  wait OFF 0ms
  durée as X 5

    Var will varying following sine wave values in 32 steps from 0 to max and reverse (analog output) :
    0, 13, 26, 38, 51, 63, 76, 88, 100, 111, 123, 134, 145, 155, 165, 175, 184, 192, 200, 208, 215, 222, 228, 233, 238, 243, 246, 249, 252, 253, 254, 255

*/

#include <TrueRandom.h>

// Defining User Types
//    1 guirlande for this project
#define GUIRL_A  5        // pin for guirlande A digital 5 pin 8 PWM

// #define GUIRL_B  6        // pin for guirlande B digital 6 pin 9 PWM

#define MAXPROGR 7        // Max value of Nb programs



// 32 half sine values for var program led :
int varoutvalue[] = { 0, 13, 26, 38, 51, 63, 76, 88, 100, 111, 123, 134, 145, 155, 165, 175, 184, 192, 200, 208, 215, 222, 228, 233, 238, 243, 246, 249, 252, 253, 254, 255 };

// Guirlande status 0 inactive, pgm ended - 1 pgm selected -
int guirl_status = 0;

// selected program for guirlande 0 to MAXPROGR-1
int sel_guirl_pgm = 0;


// struct for program led
typedef struct     /* programled définition de la structure */
{
    int ledvar;        /* 0 clignotement flashing ; 1 variation de la luminosité */
    int ledon;        /* time ON */
    int ledoff;        /* time OFF */
    int ledvaloff;    /* value for OFF status different of 0 */
    int ledxtime;    /* repeat x time this program */
} pled_t;

pled_t pled [MAXPROGR];  /* reserve memory for the multiple programs for led */


// values for each step in Var program for leds, 32 steps for OFF to ON and same for ON to OFF
const int varval[] = { 0, 13, 26, 38, 51, 63, 76, 88, 100, 111, 123, 134, 145, 155, 165, 175, 184, 192, 200, 208, 215, 222, 228, 233, 238, 243, 246, 249, 252, 253, 254, 255 };


// Defining Function Prototypes that use User Types
//


// Defining Functions below here or use other .ino or cpp files
//
// select a random program for guirlande
int guirl_pgm_select(void)
{
    randomSeed(TrueRandom.random());
    return random(MAXPROGR);
//  return TrueRandom.random(MAXPROGR);
}


// The setup() function runs once each time the micro-controller starts
void setup(void)
{
// init for the MAXPROGR programs led

    pled[0].ledvar = 0;
    pled[0].ledon = 500;
    pled[0].ledoff = 1500;
    pled[0].ledvaloff = 112;
    pled[0].ledxtime = 5;

    pled[1].ledvar = 0;
    pled[1].ledon = 500;
    pled[1].ledoff = 500;
    pled[1].ledvaloff = 0;
    pled[1].ledxtime = 10;

    pled[2].ledvar = 0;
    pled[2].ledon = 1000;
    pled[2].ledoff = 500;
    pled[2].ledvaloff = 0;
    pled[2].ledxtime = 10;

    pled[3].ledvar = 0;
    pled[3].ledon = 2500;
    pled[3].ledoff = 500;
    pled[3].ledvaloff = 0;
    pled[3].ledxtime = 6;

    pled[4].ledvar = 1;
    pled[4].ledon = 1024;
    pled[4].ledoff = 1024;
    pled[4].ledvaloff = 0;
    pled[4].ledxtime = 7;

    pled[5].ledvar = 1;
    pled[5].ledon = 3008;
    pled[5].ledoff = 3008;
    pled[5].ledvaloff = 0;
    pled[5].ledxtime = 4;

    pled[6].ledvar = 1;
    pled[6].ledon = 1984;
    pled[6].ledoff = 3520;
    pled[6].ledvaloff = 0;
    pled[6].ledxtime = 5;


pinMode(GUIRL_A,OUTPUT);    // pin for guirlande A
analogWrite(GUIRL_A, 0);    // set output to 0

Serial.begin(115200);        // begin serial print for debug

}   // end setup

// Add the main program code into the continuous loop() function
void loop()
{
    switch (guirl_status)
    {
    case 0:
        // last program has ended, so select a random program for guirlande, or the first time
        sel_guirl_pgm = guirl_pgm_select();
        guirl_status = 1;
        Serial.println(sel_guirl_pgm);        // print the selected program
        break;

    case 1:
        // do the guirlande program
        if (pled[sel_guirl_pgm].ledvar == 0)    // clignotement, flashing, not varying
        {                                                                // not var program
            for (int iter = 0; iter < pled[sel_guirl_pgm].ledxtime; iter++)
            {
                analogWrite(GUIRL_A, 255);                                // switch led to ON
                delay(pled[sel_guirl_pgm].ledon);                        // delay ON state
                analogWrite(GUIRL_A, pled[sel_guirl_pgm].ledvaloff);    // switch led to OFF value
                delay(pled[sel_guirl_pgm].ledoff);                        // delay OFF state
            }
        }
        else
        {    // var program
            int stepon, stepoff;
            // calcul du délai du pas ON
            stepon = pled[sel_guirl_pgm].ledon / 32;        // 32 steps ON, may be different from OFF

            // calcul du délai du pas OFF
            stepoff = pled[sel_guirl_pgm].ledoff / 32;        // 32 steps OFF, may be different from ON

            for (int iter = 0; iter < pled[sel_guirl_pgm].ledxtime; iter++)    // do loop x time this program led
            {
                for (int i = 0; i < 32; i++)
                {
                    analogWrite(GUIRL_A, varval[i]);    // switch led to var value
                    delay(stepon);                        // delay between each step
                }

                for (int i = 31; i > -1; i--)
                {
                    analogWrite(GUIRL_A, varval[i]);    // switch led to var value
                    delay(stepoff);                        // delay between each step
                }
            }
        }

        guirl_status = 0;    // program ended, next select a new one

        break;


    default:
    guirl_status = 0;  // program ended, next select a new one
        break;
    }
}



Mehr anzeigen
Weniger anzeigen
Bilder

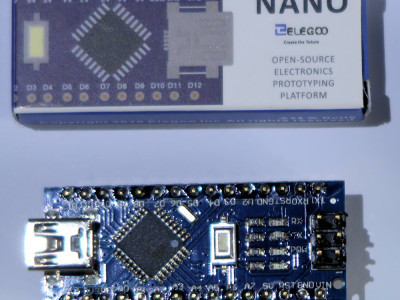

Arduino nano pour contrôler la gestion de la luminosité des guirlandes

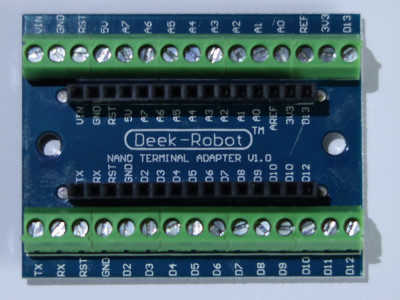

support d'Arduino pour les tests

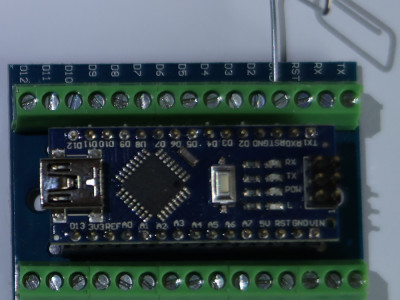

Arduino sur son support pour les tests

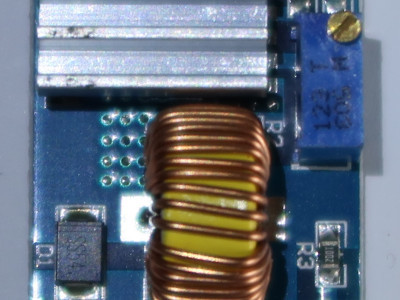

module alimentation de l'Arduino à partir du 24V

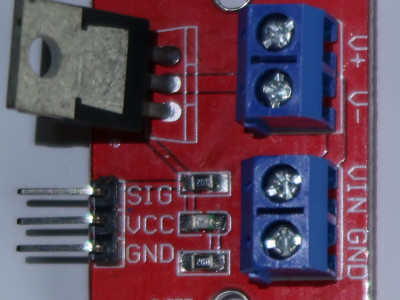

module FET de contrôle de guirlandes
composants pour l'interface driver du module FET

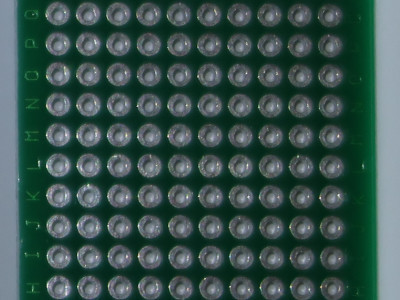

circuit imprimé à trous pour le montage

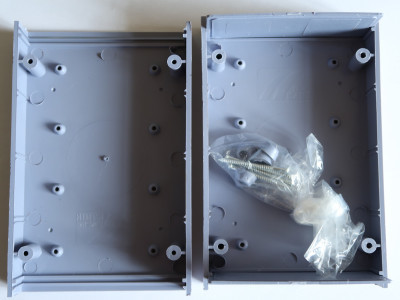

boitier plastique pour le projet
